3M Connectors D89 Wiremount Sockets

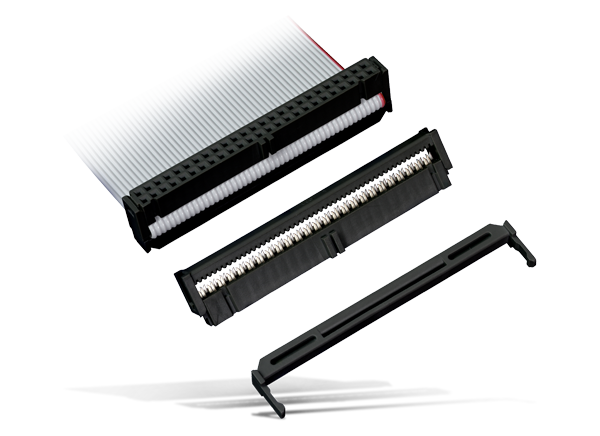

3M D89 Wiremount Sockets feature a .100" x .100" pitch for a 0.05" pitch cable. Sockets can be packaged on swords for easy loading of manual and semi-automatic assembly or in bulk packaging. "Bumps" are designed to prevent premature latch locking during shipment. The 3M Wiremount D89 Socket has a 10µ gold plating.

Features

  • Preassembled
  • “Bumps” designed to prevent premature latch locking during shipment
  • Optional double-sided adhesive pull tab for easy unplugging
  • RoHS compliant

Specifications

  • UL 94V-0 flammability rating
  • Phosphor bronze contact
  • Glass filled polyester insulation material
  • >1 × 109Ω at 500VDC insulation resistance
  • 1000VRMS @ sea level withstanding voltage
  • -55°C to +105°C temperature range
