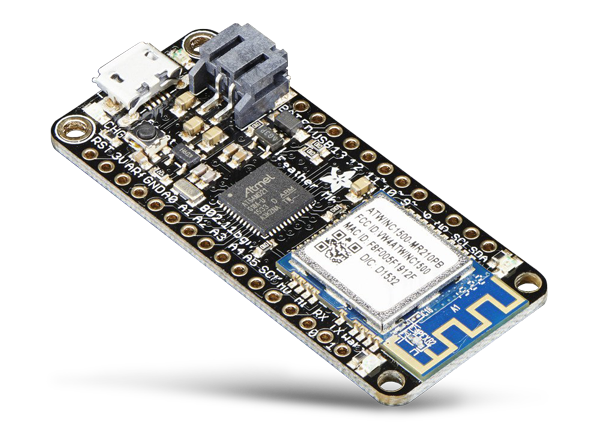

Adafruit Feather M0 Wi-Fi ATSAMD21 ATWINC1500 Dev Boards

Adafruit Feather M0 Wi-Fi ATSAMD21 and ATWINC1500 Development Boards are all-in-one Arduino-compatible and high-speed, reliable Wi-Fi development boards with built-in USB and battery charging. Each board features the 48MHz ATSAMD21G18 ARM Cortex M0 processor with 3.3V logic. The processor offers 256K of flash, 32K of RAM, and a built-in USB. The built-in USB provides a USB-to-Serial program and debug capability.

The FCC-certified ATWINC1500 Wi-Fi module allows designers to connect to the Internet. This 802.11bgn-capable Wi-Fi module has built-in low-power management capabilities, Soft-AP, SSL TSL 1.2 support, and highly reliable performance. Through the ATWINC1500, designers can connect to their own Wi-Fi networks or create their own with "Soft AP" mode, so it becomes its own access point. The module provides fast, reliable packet streaming at up to 12MHz. ATWINC1500 also enables scanning/connecting to networks in just a second or two.

To support portable projects, the board includes a connector for Adafruit 3.7V lithium polymer batteries and built-in battery charging.

Features

Measures 2.1" x 0.9" x 0.3" (53.65mm x 23mm x 8mm) without headers soldered in.
Weight: 6.1 grams
ATSAMD21G18 @ 48MHz with 3.3V logic/power
256KB FLASH, 32KB SRAM, No EEPROM
3.3V regulator (AP2112K-3.3) with 600mA peak current output, Wi-Fi can draw 300mA peak during transmit
USB native support comes with a USB bootloader and serial port debugging
20 GPIO pins
Hardware Serial, hardware I²C, hardware SPI support
8 PWM pins
10 analog inputs

1 analog output
Built-in 200mA lithium polymer battery charger with charging status indicator LED
Pin #13 red LED for general purpose blinking
Power/enable pin
4 mounting holes
Reset button
Options
- 3010 - PCB Antenna - Loose Headers
- 3061 - uFL Antenna - Loose Headers
- 3044 - PCB Antenna - Stacking Headers
- 2598 - PCB Antenna - Headers Pre-Soldered
