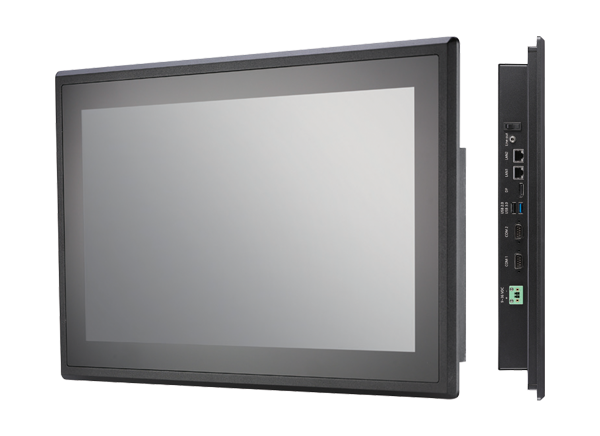

ADLINK Technology STC-AL Series Panel PCs

ADLINK Technology STC-AL Series Panel PCs come with 5-wire resistive touch interfaces in 10-, 12-, and 15-inch display sizes. These Smart touch computers are based on a quad-core Intel® Atom® x7-E3950 processor. The computers come with Mini PCIe expansion that supports fieldbus communication, wireless connectivity, and other functions to interface with industrial networks, automated systems, and auxiliary equipment. These STC-AL computers provide flexible I/O customization to fulfill a wide range of application-specific functionality.

These PC panels feature IP65-rated moisture and particle protection, power input capability range from 9V to 36V, and ADLINK's SEMA utility for maximized system uptime. The STC-AL smart computers offer -20°C to 60°C of the storage temperature range. These smart touch computers support the Windows® 10 IoT Enterprise software support.


  • Quad-core Intel® Atom® x7-E3950 processor
  • Sensors:
    • 5-wire resistive touch sensor
    • Optional 5-point projected capacitive sensor
  • IP65-rated front bezel to deter water and dust ingress
  • Ease of installation with a panel and optional VESA mount
  • SEMA support and custom I/O and function expansion


  • 4GB DDR3L memory
  • 9V to 36V power input capability range
  • 10-, 12-, and 15-inch display sizes
  • Operating temperature range:
    • -20°C to 50°C range for 10" and 12" PCs
    • 0°C to 50°C range for 15" PCs
  • 400 nits (w/o touch) luminance
  • 1366 x 768 display resolution (in pixels)
  • 8GB maximum RAM capacity
  • 415mm x 264mm x 55mm dimensions
