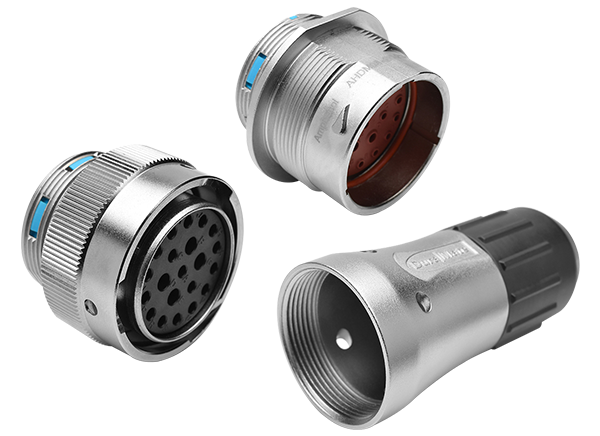

Amphenol Sine Systems DuraMate™ AHDM Circular Metal Connectors

Amphenol Sine Systems DuraMate™ AHDM Circular Metal Connectors are IP68 / 69K (mated), environmentally sealed, multi-pin, heavy-duty, metal (AHDM), circular connectors. These connectors can withstand the challenges and complexities of harsh-environment off-road applications. These connectors are designed with a three key-way quick-connect bayonet locking system to ensure proper mating of the connectors. The series is available in size 24 with 13 insert arrangements and in size 18 with 6 insert arrangements. Amphenol Sine Systems DuraMate AHDM Connectors feature high-current configurations incorporating RADSOK® contacts and high-density signal and mixed power insert configurations. These vibration-resistant connectors have an operating temperature range of -55°C to +125°C.

Features

Available in size 24 with 13 insert arrangements 7 (x2), 9, 16, 18, 19, 21, 23, 27, 29, 31, 35, and 47
Available in size 18 with 6 insert arrangements 6 (x2), 8, 14, 20, and 21
Three key-way bayonet locking system ensures proper mating of connectors
High-density signal and mixed power insert configurations
-55°C to +125°C operating temperature range
High current configurations incorporating RADSOK contacts
Utilizes A Series™ standard contact system
High-strength, impact-resistant, lightweight thermoplastic or zinc-alloy metal housings

Low insertion force stamped terminals offer improved manufacturing efficiencies
Standard wide thread adapter (WTA) provides maximum access to the rear grommet and improved serviceability
IP68/IP69K protection (in mated condition)
Durable high-temperature silicone seal protects against lubricating oils, hydraulic fluids, and fossil fuels
Backshells maintain a compression-fit design to resist maximum pull-out forces and facilitate strain relief for jacketed cable ranges
Wire-entry sealing available in three separate ranges for discrete wire applications
