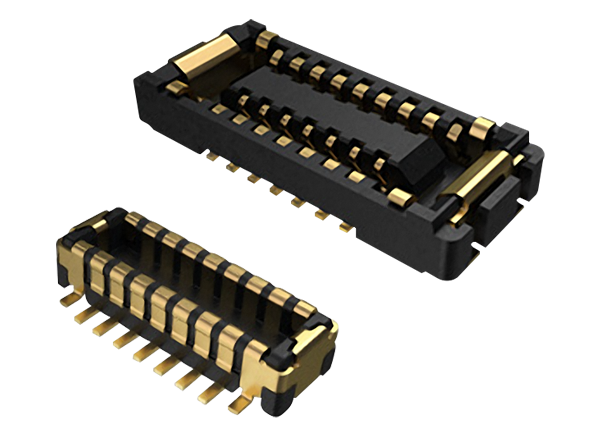

Amphenol Aorora 101 Series 1.00mm Micro Board-to-Board Connectors

Amphenol Aorora 101 Series 1.0mm Micro Board-to-Board (BTB) Connectors are 0.35mm pitch micro board-to-board connectors designed for high-density applications. Amphenol Aorora 101 BTB Connectors support an extremely low-profile 1.00mm stack height. These miniaturized connectors feature surface-mount terminations and are ideal for consumer applications such as mobile phones, smartwatches, smart glasses, and virtual-reality/augmented-reality (VR/AR) devices. The series is mismatch-proof during mating and offers a maximum current rating up to 3A.

Features

  • 0.35mm pitch, 1.0mm stack height
    • Low-profile design suitable for space-constrained applications
  • Chamfer design prevents mismatching during mating
  • Maximum current rating up to 3A
    • Meets high-current application requirements
  • 50VAC/DC voltage rating
  • Double contact points ensure enhanced contact stability
  • High-temperature thermoplastic housing
    • Wide operating temperature range of -40°C to +85°C
  • Lead-free and halogen-free
    • Meets environmental, health, and safety requirements

Applications

  • Mobile phones
  • Smart watches
  • Smart glasses
  • VR/AR devices
