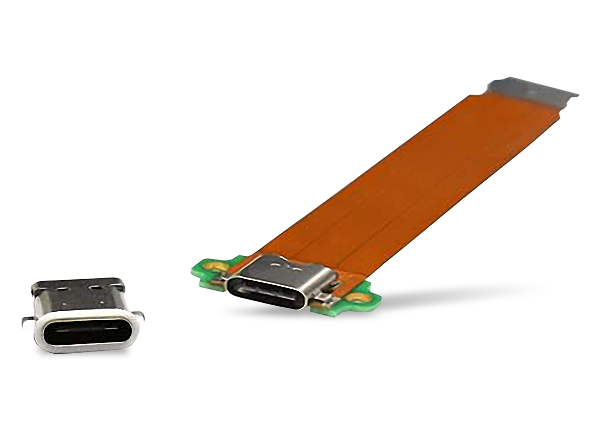

Amphenol LTW Swift LP Waterproof USB 3.1 Type-C Connector

Amphenol LTW Swift LP Waterproof USB 3.1 Type-C Connector is ideal for wearables and portable devices and features an IP67 waterproof rating. This connector offers a one-stop solution for receptacles with FPC termination. Amphenol LTW Swift LP Waterproof USB 3.1 Type-C Connector supports up to 10Gbps transfer speed and up to 5A current rating. Additional features include a 30VAC/DC voltage rating and a wide operating temperature range.

Features

  • Ideal for wearables and portable devices
  • One-stop solution for receptacles with FPC termination

Specifications

  • IP67 (receptacle, unmated) waterproof rating
  • Up to 10Gbps transfer speed
  • Up to 5A current rating
  • 30VAC/DC voltage rating
  • Operating temperature range
    • -40°C to +85°C (receptacle)
    • -20°C to +80°C (overmolded cable)
