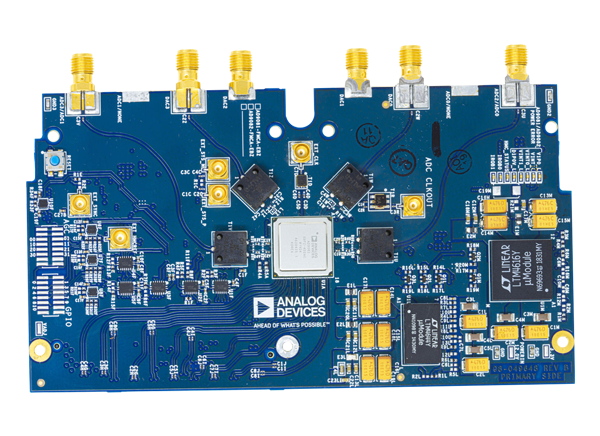

Analog Devices Inc. AD9082-FMCA-EBZ Evaluation Board

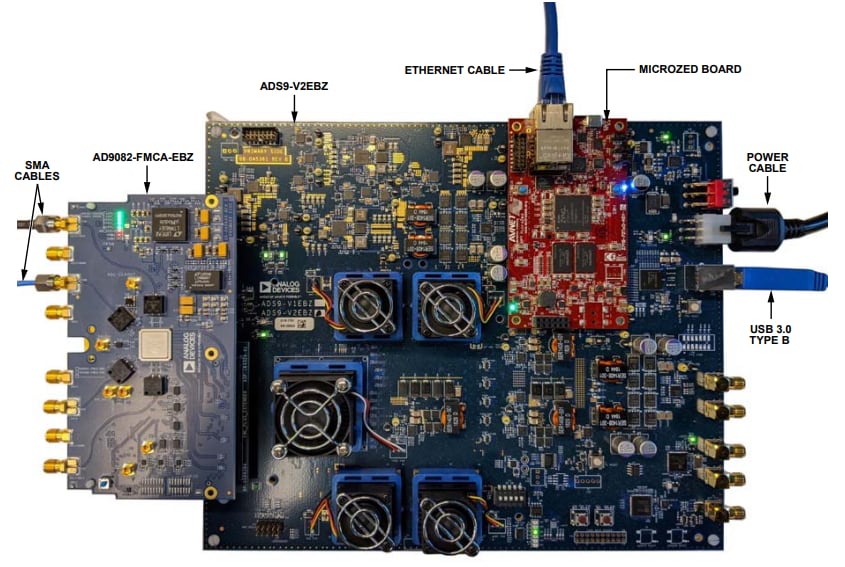

Analog Devices Inc. AD9082-FMCA-EBZ Evaluation Board includes the required support circuitry to operate the AD9082 Mixed-Signal Front-End (MxFE^®) RF transceiver in various modes and configurations. This AD9082-FMCA-EBZ evaluation board connects to the ADS9-V2EBZ board for evaluation with the Analysis, Control, Evaluate (ACE) software. These boards can also interface to the Field- Programmable Gate Array (FPGA) development boards from Xilinx^® or Intel^®. The ACE software helps to set up the AD9081 or AD9082 transceiver in various modes and captures Analog-to-Digital Converter (ADC) data for analysis. The DPGDownloaderLite software generates and transmits vectors to the Digital-to-Analog Converters (DACs) that can be sent to a spectrum analyzer for further analysis.

Features

Fully functional evaluation board for the AD9082 RF transceiver
PC software for control with ACE software
On-board clocking provided by the HMC7044 manages device and FPGA clocking
Option to switch to external direct clocking
Additional hardware needed:
- ADS9-V2EBZ FPGA-based data capture board
- Signal generator for analog input
- Spectrum analyzer (to measure DAC output)
- SMA cable
- SMA female to female adapter (optional)
- Ethernet to USB adapter (optional)
- PC with USB port and Ethernet port
- Windows^® 7 or newer operating system
