Analog Devices Inc. ADP2384 Evaluation Board

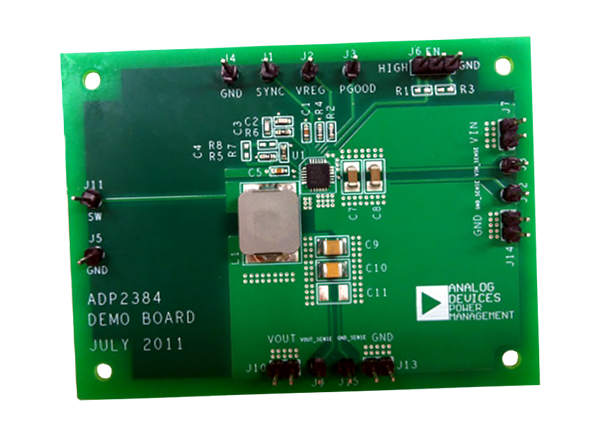

Analog Devices Inc. ADP2384 Evaluation Board evaluates the ADP2384 DC/DC regulator having 200kHz to 1.4MHz programmable switching frequency. This regulator operates from an input voltage range of 4.5V to 20V. The ADP2384 regulator targets high performance applications that require high efficiency and design flexibility. The output of the ADP2384 evaluation board is preset to 3.3V and the switching frequency is set to 600kHz.

Features

  • 4.5V to 20V input voltage
  • ±1% output voltage accuracy
  • Integrated MOSFET:
    • 44mΩ/11mΩ
  • Continuous output current:
    • 4A for ADP2384
    • 6A for ADP2386
  • 200kHz to 1.4MHz programmable switching frequency
  • 200kHz to 1.4MHz synchronizes to external clock
  • 180° out-of-phase synchronization
  • Precision enable and power good
  • External compensation
  • Internal soft start with external adjustable option
  • Startup into precharged output

Schematic

Schematic - Analog Devices Inc. ADP2384 Evaluation Board

Associated Product

ADP2384 Step-Down DC-DC Regulator

Analog Devices Inc. ADP2384 Step-Down DC-DC Regulator

20V, 4A, Regulator w/integrated 44mΩ, high-side power MOSFET and 11.6mΩ MOSFET.
