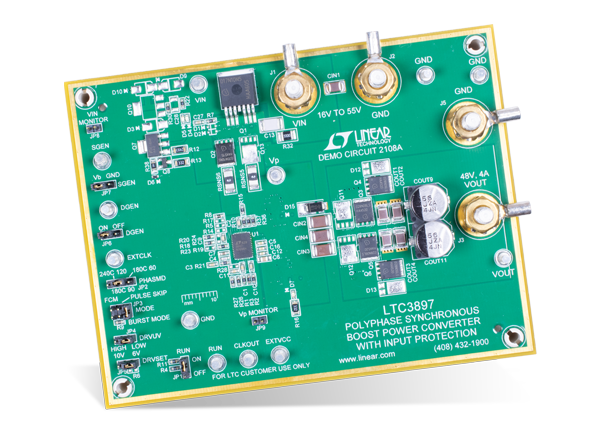

Analog Devices Inc. LTC3897 Demo Board DC2108A is an evaluation board featuring an example circuit based on the LTC3897 Current Mode Boost Controller. The LTC3897 Demo Board DC2108A operates over a 16V to 55V input and provides 4A to 12A of output current. The 160kHz constant frequency operation results in a small and efficient circuit. The LTC3897 Converter provides high output voltage accuracy (typically ±3%) over a wide load range with no minimum load requirement. The Demonstration Circuit can be easily modified to generate different output voltages.
Input Supply Range (VIN): 16V to 55V
Output Voltage (VOUT): 48V ±3%
Maximum Output Current (IOUT): 7A
Nominal Switching Frequency (fSW): 160kHz
Analog Devices Inc. LTC3897 PolyPhase™ Synchronous Boost Controllers
Incorporates a surge stopper, input/output protection, and an ideal diode controller.
