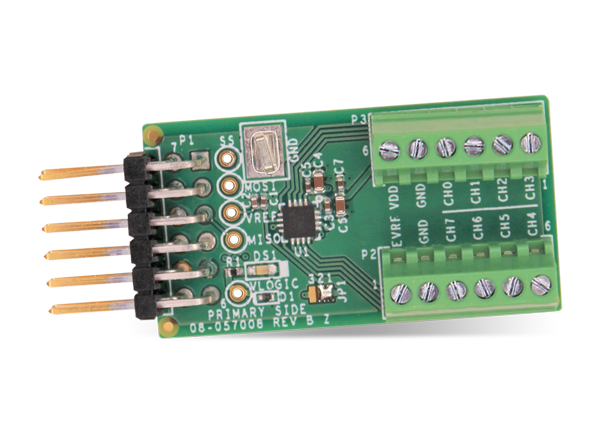

Analog Devices Inc. EVAL-AD5592RPMDZ PMOD-Compatible Evaluation Board
Analog Devices EVAL-AD5592RPMDZ PMOD-Compatible Evaluation Board is a flexible 8-channel, 12-Bit, Configurable ADC/DAC/GPIO with an on-chip Reference, SPI interface peripheral module. SPI PMOD peripheral connectors can be found on many MCU or FPGA development boards. EVAL-AD5592R-PMDZ can be connected directly into those systems. The board is a cost-effective alternative to the full-featured product evaluation boards, with terminal block connections, and no extra signal conditioning.
Features
- 8-channel, 12-bit ADC and DAC
- Configurable output to DAC, ADC and GPIO
- Connectable to FPGA and MCU platforms
Block Diagram
Associated Product
Analog Devices Inc. AD5592R 12-Bit Configurable ADC/DACs
8-Channel, 12-Bit, Configurable ADC/DACs with on-chip Reference, SPI interface.
Published: 2019-11-25
| Updated: 2022-03-10
