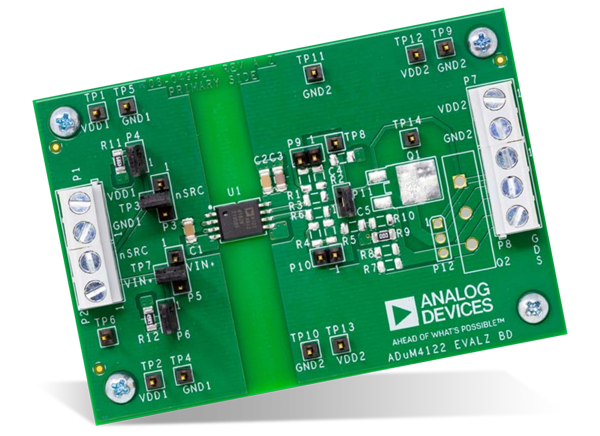

Analog Devices Inc. EVAL-ADuM4122EBZ Evaluation Board supports the ADuM4122 isolated gate driver with slew rate control. iCoupler® technology provides isolation between the ADuM4122 input signal and the output gate driver. The evaluation board supplies jumpers and screw terminals to configure different drive conditions. The EVALADuM4122EBZ board operates with square waves and dc values on the VIN+ and SRC pins.
3A short-circuit output capability
Output power device resistance: <3Ω
Output voltage range to 35V
Output and input undervoltage lockout (UVLO)
Pad placement for multiple switch types
Pad placement for external series gate resistors
Screw terminals for easy connectivity
Placement for capacitive load testing
Jumpers for easy slew rate setting
Analog Devices Inc. ADuM4122 Isolated Gate Drivers
Single-device, dual-output drivers with iCoupler® technology to provide precision isolation.
