Analog Devices Inc. EVAL-HMC7992 Evaluation Board

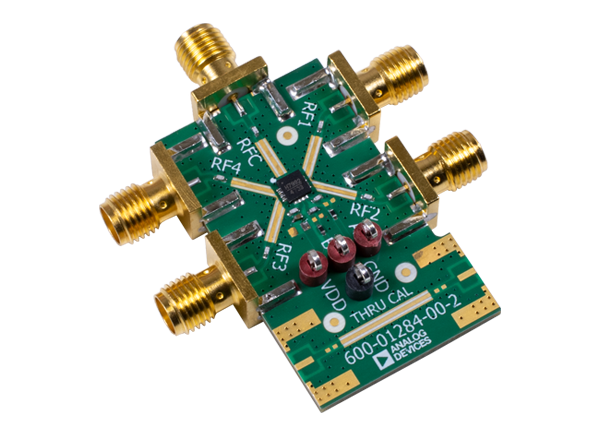

Analog Devices Inc. EVAL-HMC7992 Evaluation Board helps designers become familiar with the features of the HMC7992 SP4T switches. This evaluation board includes the HMC7992LP3DE SP4T switch and is developed using RF circuit design techniques. The HMC7992 switches provide high isolation of 45dB and a low insertion loss of 0.6dB at 2GHz.
Schematic Diagram
HMC7992 SP4T Switches
Analog Devices Inc. HMC7992 Non-reflective Silicon SP4T Switches
Silicon SP4T switch with a high isolation of 45dB and a low insertion loss of 0.6dB at 2GHz.
