Analog Devices Inc. EVAL-HMC8411 Evaluation Board
Analog Devices Inc. EVAL-HMC8411 Evaluation Board (EV1HMC8411LP2F) is a demonstration and development platform for the HMC8411 Low Noise Amplifier. The HMC8411 is a Gallium Arsenide (GaAs), Monolithic Microwave Integrated Circuit (MMIC), pseudomorphic High Electron Mobility Transistor (pHEMT), low noise wideband amplifier that operates from 0.01GHz to 10GHz.

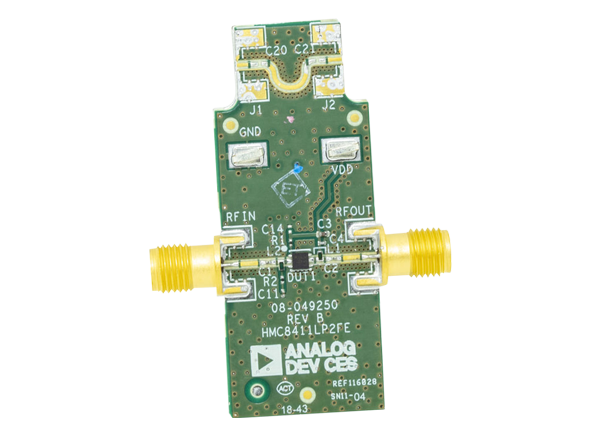

The EVAL-HMC8411 Evaluation Board features a pre-mounted HMC8411LP2FE in a 2.0mm x 2.0mm LFCSP6 surface-mount package, along with 50Ω SMA connectors for RFIN and RFOUT. DC bias test points are provided for VDD and GND. The EVAL-HMC8411 PCB is mounted on a heat sink for thermal protection. The Evaluation Board provides an example application circuit, allowing rapid prototyping when incorporated into existing designs.
Supported Device
Analog Devices Inc. HMC8411 Low Noise Amplifier
GaAs, MMIC, pHEMT, low-noise wideband amplifier that operates from 0.01GHz to 10GHz.
Board Layout & BOM
