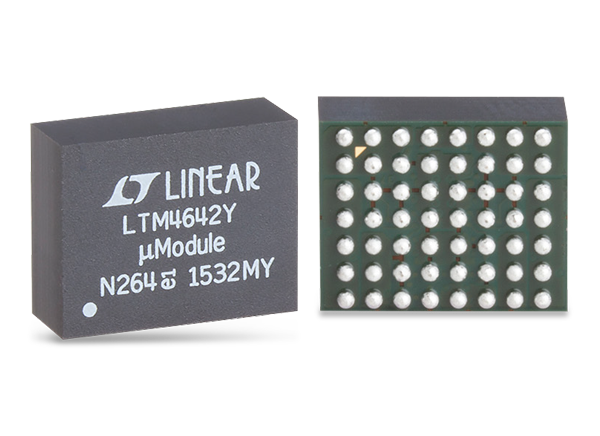

Analog Devices Inc. LTM4642 DC/DC μModule® Regulators
Analog Devices Inc. LTM4642 DC/DC μModule® Regulators are complete dual 4A or single 8A step-down micromodules with a switching controller, power FETs, inductor, and all support components. The LTM4642 operates over 4.5-20V input voltage ranges (2.375V min with external CPWR bias). The regulators support two outputs with 0.6-5.5V voltage ranges, set by a single external resistor. Analog Devices LTM4642 provides a high-efficiency design that delivers 4A continuous current (5A peak) for each output.
Features
- Small form factor dual 4A power supply
- 4.5V to 20V (2.375V min with CPWR bias) input voltage range
- Dual 180° Out-of-Phase outputs with 4A DC
- Dual outputs with 0.6V to 5.5V range
- Output voltage tracking
- ±1.5% maximum total DC output voltage error
- Up to 95% maximum efficiency
- Phase-lockable fixed frequency 600kHz to 1.4MHz
- Constant on-time, valley current-mode architecture
- Parallel current sharing
- Selectable Burst Mode® operation
- Output overvoltage and overcurrent protection
- 9mm × 11.25mm × 4.92mm BGA package
Applications
- Telecom and networking equipment
- Servers
- FPGA power
Typical Application
Published: 2017-04-26
| Updated: 2022-03-11
