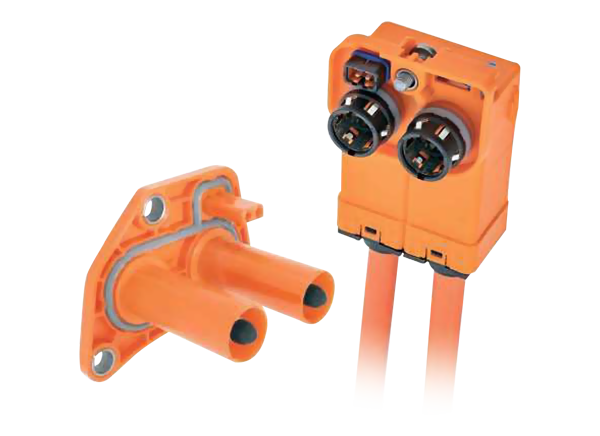

Aptiv HV RCS 890 Direct Mate 2 Way Connectors offer a 200A maximum current, 850VDC voltage, and IP67 sealing class. These connectors feature an unshielded terminal holder within the device, replacing traditional shielded headers, and a header that is sealed in both mated and unmated positions. Direct Mate 2 Way connectors are fingersafe via plastic tips on male pins and provide cable ranges up to 50mm2. Aptiv HV RCS 890 Direct Mate 2 Way Connectors are ideal for HV batteries, DC/DC converters, and AC/DC inverters.
Unshielded terminal holder within device, replacing traditional shielded headers
Unique and safe mating screwing with innovative Screw Position Assurance (SPA)
Header is sealed in both mated and unmated position
Robust bolt driven mate assist
Fingersafe via plastic tips on male pins
Power electric box
200A current rating
850VDC voltage rating
V1 vibration level
-40°C to +125°C temperature range
IP67 sealing class
2 power terminals
Cable range up to 50mm2
Aptiv Power Conversion Solutions
High voltage connection systems designed specifically for the voltage and current needs up to 250A.
