Axiomtek CEB94701 Development Board

Axiomtek CEB94701 Development Board is compatible with COM Express™ CPU type 7 module and fully compliant with PICMG COM Express standards. This board provides a PCI-Express x16 slot, PCI-Express x8 slot, PCI-Express x4 slot, PCI-Express x1 slot, and two PCI-Express mini card sockets for expansion purposes. The CEB94701 supports I/O features like display interface (VGA), gigabit/fast Ethernet and 10G baseKR Ethernet port / SFP+ cages, SATA-600 interfaces, USB 3.0 ports, and RS-232/422/485 ports.


  • COM Express™ type 7 baseboard for evaluation purpose
  • USB 3.0 supported
  • Port 80 display for debugging
  • Switch button for PWRBTN, RESET, SLEEP, and LID
  • Onboard multi I/O:
    • Two TX/RX ports
    • Two RS-232/422/485 ports
  • Serial ATA:
    • Two SATA-600 connectors
  • Ethernet:
    • Two RJ45 interfaces for 1000/100/10Mbps
    • Two 10G baseKR Ethernet port / SFP+ cages
  • USB interface:
    • Four USB ports comply with USB spec. Rev. 3.0
  • Expansion interface:
    • One PCIe x16 slot
    • One PCIe x8 slot
    • One PCIe x4 slot
    • One PCIe x1 slot
  • Two PCI-Express mini card socket which complies with PCI-Express mini card spec. V1.2
  • Lithium 3V/220mAH battery
  • 244mm x 291mm dimensions
  • 1.6mm board thickness
  • -20°C to 70°C operating temperature range
  • 10% to 95% relative humidity, non-condensing operation humidity

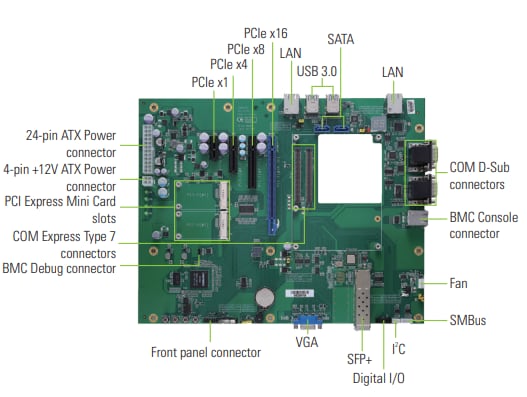

Board Overview
