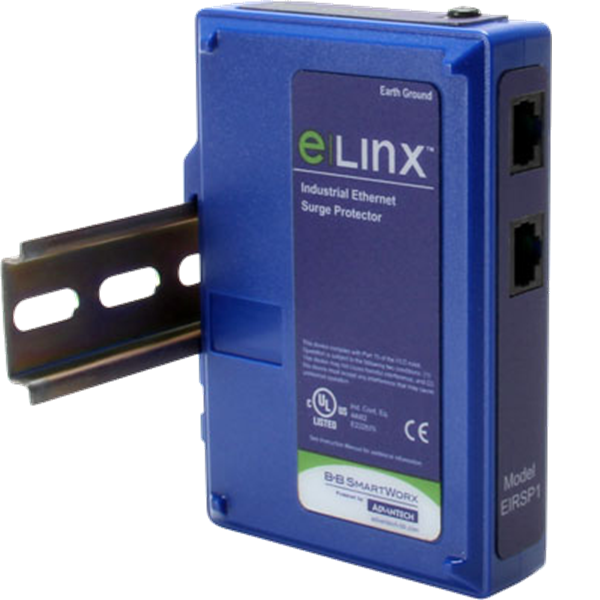

B+B SmartWorx BB-EIRSP1 Industrial Ethernet Surge Suppressor Model is designed to protect all eight lines of a standard Cat5e Ethernet cable. The BB-EIRSP1 is compatible with 10/100BaseT networks and 802.11af (Modes A & B) Power-over-Ethernet ("PoE"). Mode A applies power to the data pairs, pins 1/2 and 3/6. Mode B applies power to the unused pairs, pins 4/5 and 7/8. Network connections are made using RJ-45 connectors. Grounding is accomplished using a ground lug which accepts 14AWG to 22AWG wire. Stranded or braided cable is recommended with a 1 meter maximum run to Earth Ground.


  • Single-stage surge protection for all eight Cat5e lines
  • 10/100 BaseT Ethernet, RJ45 connectors
  • Wide operating temperature (-40°C to +80°C)
  • DIN rail mount IP30 enclosure
  • Power-over-Ethernet (PoE) compatible
  • UL Listed


  • Data communications
  • Highly exposed Ethernet
  • Telecommunication and indoor industrial installations
  • Surveillance cameras
  • Remote power and communication


  • Network
    • Ethernet Connector:RJ45 (In and Out)
    • Protocols: PoE 802.11af (Power-over-Ethernet) (Modes A & B)
    • Speed: 10/100 BaseT
  • Surge Protection
    • Lines Protected: All eight (8) RJ45 (CAT5)
    • Clamping Voltage: 60V
    • Peak Pulse Power: 600W
    • Peak Surge Current: 1000A
    • Capacitance: <50pF
  • Environmental
    • Response Time: <5ns
    • Operating Temperature: -40°C to +80°C (-40°F to +176°F)
    • Storage Temperature: -40°C to +85°C (-40°F to +185°F)
    • Operating Humidity: 0% to 95%, non-condensing
  • Physical
    • Enclosure: Plastic, IP30
    • Mounting: DIN Rail
    • Dimensions: 3.0cm x 11.9cm x 8.6cm (1.2” x 4.7” x 3.4”)
  • Wiring
    • Wire Type: Copper wire only. One conductor per terminal.
    • Wire Range: 14AWG to 22AWG
    • Tightening Torque: 1.7lb per inch
    • Wire Temperature Rating: 105°C, max. (sized for 60 °C ampacity)
  • Meantime Between Failure (MTBF)
    • MTBF: 1275588 hours
    • MTBF Calc. Method: MIL117F Parts Count Reliability Prediction
  • Certifications
    • CE, FCC, UL Listed
    • CE - Directives
      • 2014/30/EU Electromagnetic Compatibility Directive
      • 2011/65/EU amended by (EU) 2015/863 Reduction of
      • Hazardous Substances Directive (RoHS)
      • 2012/19/EU Waste Electrical and Electronic Equipment (WEEE)
    • Ce - Standards
      • EMC:
        • EN 55032:2015 Class A Electromagnetic compatibility of multimedia equipment – Emission requirements
        • EN 55024:2010 Information Technology Equipment Immunity Characteristics – Limits and methods of measurement
