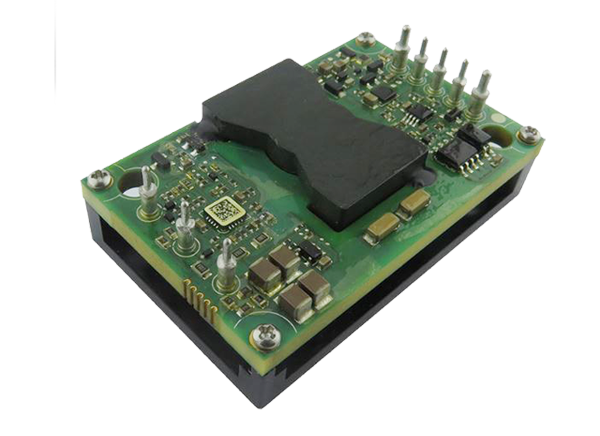

Bel Power Solutions 0RQB-C5Wx4x Isolated DC/DC Converters

Bel Power Solutions 0RQB-C5Wx4x Isolated DC/DC Converters offer a 24VDC to 54VDC output voltage rating, 3A to 6.25A maximum current, and up to 93% efficiency rating. These units are highly efficient and feature remote on/off, input under-voltage lockout, and overcurrent, short circuit, and overvoltage protection. The conformal coating makes these converters ideal for environmental ruggedness, including industrial, railways, and telecommunication applications.

Features

  • 0RQB-C5W24x
    • 50/110/160VDC Input / 24VDC @ 6.25A Output/1/4th Brick Converter
    • Reinforced isolation
    • Fixed frequency
    • High efficiency
    • Input undervoltage lockout
    • Input overvoltage lockout
    • Output overvoltage protection
    • Over temperature protection
    • Approved to UL/CSA60950-1, 2nd +A2 version(TBD)
    • Class II, Category 2, Isolated DC/DC Converter (refer to IPC-9592B)
  • 0RQB-C5W54L
    • 72/96/110VDC Input / 24VDC @ 6A Output/1/4th Brick Converter
    • Isolated
    • Fixed frequency
    • High efficiency
    • Conformal coated
    • Input undervoltage lockout
    • Input overvoltage lockout
    • Output overvoltage protection
    • Overcurrent and short circuit protection
    • Over temperature protection
    • Approved to EN 60950-1, 2nd +A2 version
    • Class II, Category 2, Isolated DC/DC Converter (refer to IPC-9592B)

Applications

  • Industrial
  • Railways
  • Telecommunication

Datasheets
