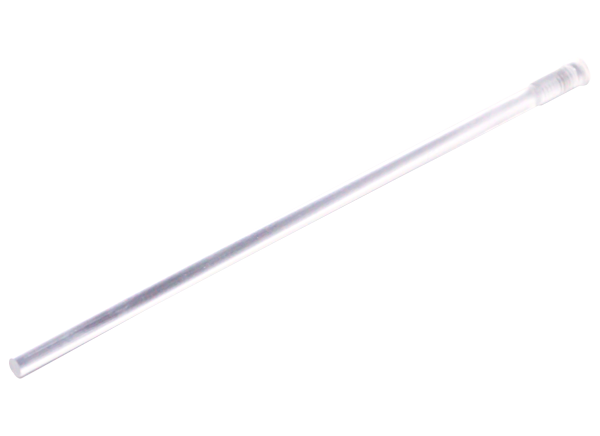

BIVAR PLTR IP67-Rated Rigid Light Pipes

BIVAR PLTR Rigid Light Pipes are front mount, press-fit mounting solutions with threaded retention. The PLTR Rigid Light Pipes feature an Ingress Protection rating of IP67, offering protection against dust and the effect of immersion in water to a depth up to 1 meter. PLTR Rigid Light Pipes are offered in 3mm and 5mm lens sizes, with a body length range from 6.4mm to 72mm.

Features

  • Sealed to IP67 rating
  • Polycarbonate 94V-0 material
  • Clear color
  • Dome face, front mounting
  • Threaded retention
  • White and black gasket seal options
  • RoHS compliant
  • Lens size:
    • 3mm PLTR2
    • 5mm PLTR5
  • Body length range:
    • 6.4mm to 72mm
    • 0.25" to 2.835"
Published: 2017-06-13 | Updated: 2022-03-11
