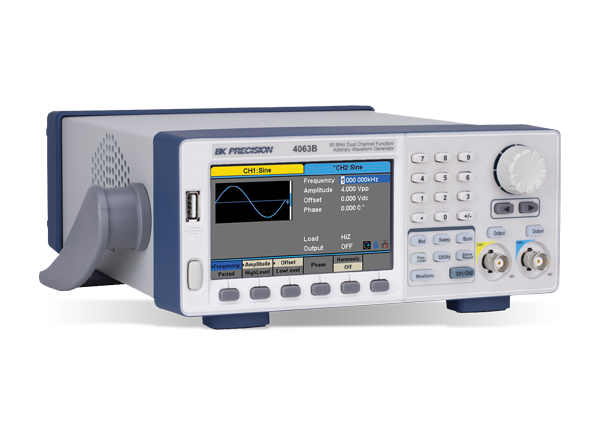

B&K Precision 4060B Function/Arbitrary Waveform Generators

B&K Precision 4060B Dual Channel Function/Arbitrary Waveform Generators are capable of producing precise sine, square, triangle, pulse, and arbitrary waveforms. The intuitive touchscreen display simplifies control of many features, including extensive waveform modulation schemes, linear/logarithmic sweep, burst mode, and variable DC offset. The 4060B series provides system integrators with auxiliary triggering capabilities and a 10MHz reference clock for synchronizing multiple instruments. B&K Precision 4060B Dual Channel Function/Arbitrary Waveform Generators combine the cost-saving benefits of both DDS and true point-by-point arbitrary architectures to meet a wide range of applications that require high signal fidelity and low-jitter arbitrary waveform generation capabilities.

Features

16-bit resolution, 8 Mpts, 300 MSa/s (DDS), 75 MSa/s (true point-by-point) arbitrary waveform generator
Up to 1.2 GSa/s sample rate for sine, square, triangle, and pulse waveforms
2 independent channels with single-button phase synchronization
Channel copy, track, and waveform combine functions
Generate sine waves up to 120MHz
Harmonic generator function
Linear sweep, logarithmic sweep, and burst functions
Precise pulse width and rise/fall time adjustments
Supports AM/DSB-AM/FM//PM/PSK/FSK/ASK and PWM modulation types

DC signal level up to ±10V into a high-z load or ±5V into a 50Ω load
Variable DC offset
Adjustable duty cycle
Frequency counter
Internal/external triggering
196 built-in predefined arbitrary waveforms
Store/recall up to 10 instrument settings
LAN and USB device port (USBTMC-compliant)
GPIB connectivity with optional USB-to-GPIB adapter
Front-panel USB host port
Arbitrary waveform editing software included
LabVIEW™ driver is available

Specifications

Dual channel
4.3" TFT color (24-bit) LCD touchscreen
10 instrument settings
Frequency characteristics
- 1µHz to 120MHz sine range
- 1µHz to 25MHz square range
- 1µHz to 1MHz triangle/ramp ranges
- 1µHz to 25MHz pulse range
- >120MHz Gaussian noise (-3dB)
- 1µHz to 20MHz arbitrary range
- ±1ppm accuracy (1 year)
- 1µHz resolution
Output characteristics
- Up to 4-digit amplitude/offset resolution
- ±(1% + 1mVpp) amplitude accuracy (10kHz, 0V offset)
- <-60dBc cross-talk
- 50Ω typical output impedance
- Overvoltage output protection

Arbitrary characteristics
- 196 built-in waveforms
- 8 points to 8M points waveform length
- 16 bits vertical resolution
- Sampling Rate
  - 300 MSa/s in DDS mode
  - 75 MSa/s in true arbitrary mode
- Minimum rise/fall time
  - 4.5ns in DDS mode
  - 8.5ns in true arbitrary mode
- 80MB file system non-volatile memory storage
260.3mm x 107.2mm x 295mm (10.25" x 4.221" x 11.61") dimensions
7.6lbs (3.43kg) weight
50W maximum power consumption
0°C to +40°C operating temperature range
3-year warranty
