Bourns AMS22B Analog Rotary Position Sensors

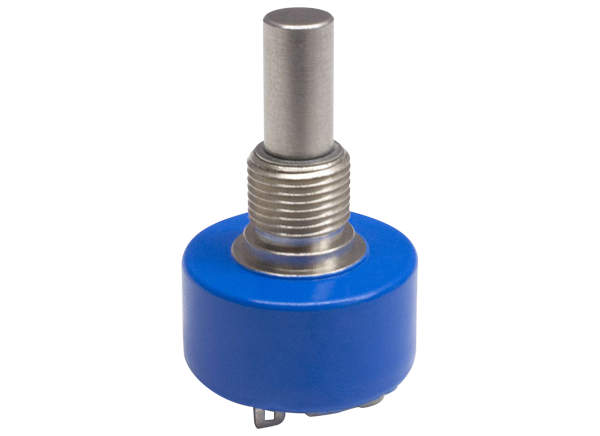

Bourns AMS22B Analog Rotary Position Sensors are designed to meet the specifications of heavy-duty applications. These single-turn non-contacting rotary sensors feature a 1/4" stainless steel shaft supported by a bronze sleeve bearing. The AMS22B are highly versatile panel mount position sensing devices which provide factory programmable electrical angle from 10° to 360°. These sensors offer high resistance towards vibration/shock and also resist the entry of fluids/dust. Bourns AMS22B Analog Rotary Position Sensors are available in a bushing mount configuration with a rotational life of up to 50 million cycles.


  • Non-contacting magnetic technology
  • Highly resistant to vibration/shock
  • Highly resistant to fluid/dust ingress
  • Programmable at factory for zero position
  • Robust design for industrial applications
  • Low hysteresis with high repeatability
  • Wide operating temperature range
  • RoHS compliant


  • Patient platform positioning feedback
  • Pneumatic control valve position feedback
  • Draw wire position sensors
  • Remote communications antenna positioning
  • Actuator motor position feedback
  • Automated manufacturing robotics
  • Tilt control and tilt positioning feedback
  • Foot pedal, steering, lift-and-shuttle, and suspension systems
Published: 2013-05-09 | Updated: 2022-03-11
