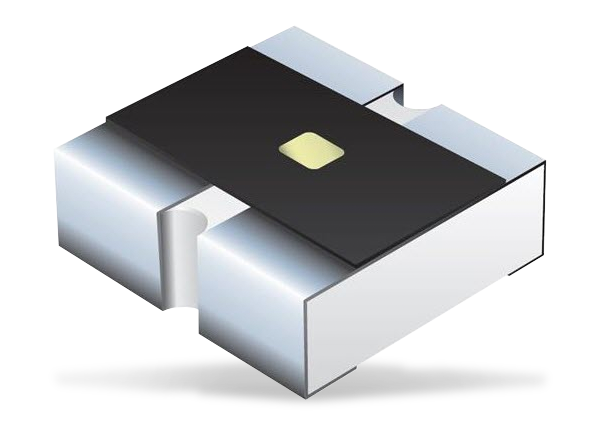

Bourns CAY06-AS Thick Film Chip Arrays
Bourns CAY06-AS Thick Film Chip Arrays are sulfur-resistant and available with two isolated elements in an 02 package width. These convex termination style resistors feature a 10Ω to 1MΩ resistance range and 0Ω jumper with ±5% tolerance. The series offers 31mW power and 12.5V maximum operating voltage. Bourns CAY06-AS Thick Film Chip Arrays operate in a -55°C to +125°C temperature range.
Features
- RoHS compliant
- Convex termination style
- 2 isolated elements in an 02 package width
- ±5% resistance tolerance
- 10Ω to 1MΩ resistance range with 0Ω jumper
- Sulfur-resistant design
Specifications
- ±5% resistance tolerance
- 100V (maximum) overload voltage
- 50V (maximum) working voltage
- 70°C derating temperature
- -55°C to +125°C operating temperature range
Construction
Related Resistor Arrays
Bourns CAYxA-AS AEC-Q200 Thick Film Chip Resistor Arrays
AEC-Q200 compliant & sulfur resistant, based on ASTM-B-809-95 & EIA-977 (test parameter B) standard.
