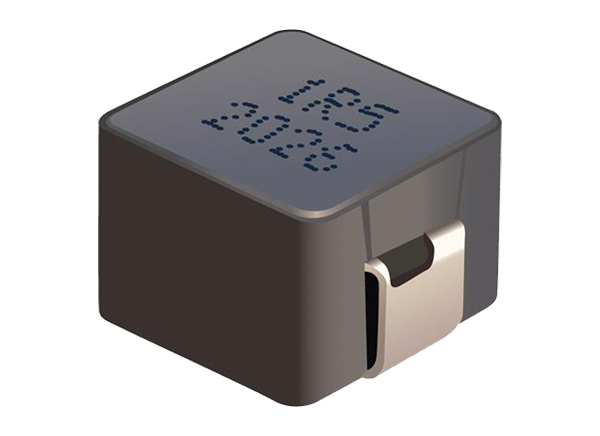

Bourns SRP7050AA Shielded Power Inductors
Bourns SRP7050AA Shielded Power Inductors are AEC-Q200 qualified and feature a 0.47µH to 47µH inductance range. Bourns SRP7050AA Inductors offer shielded construction, a metal alloy powder core, low buzz noise, and a 1.8A to 22A saturation current. Applications include DC/DC converters as well as consumer, industrial, and telecom power supplies.
Features
- Shielded construction
- Metal alloy powder core
- High saturation current
- Low buzz noise
- AEC-Q200 compliant
- RoHS compliant and Halogen-free
Applications
- DC/DC converters
- Power supplies in consumer, industrial, and telecom electronics
Specifications
- -55°C to +155°C operating temperature range
- 0.47µH to 47µH inductance range
- 20% tolerance
- 2.6A to 22A heating current
- 3.3mΩ to 320mΩ maximum DC resistance
- 1.8A to 22A saturation current
- 10 Q minimum
- 7.3mm x 6.6mm x 4.8mm dimensions
Schematic
Published: 2021-04-08
| Updated: 2022-03-11
