Bourns TVS Diodes

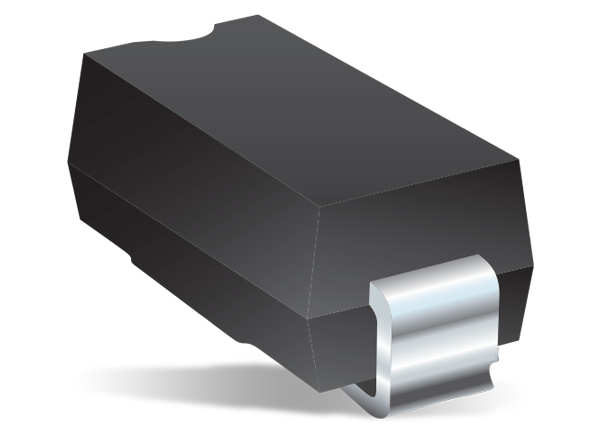

Bourns Surface-Mount TVS Diodes are low capacitance devices that provide ESD, EFT, and surge protection for external ports of electronic devices such as cell phones, handheld electronics, and other portable electronic devices. Bourns TVS Diodes include smaller chip diodes that have the capability to provide a silicon diode with minimal packaging overhead. The chip diodes 0603, 1005, 1408, and 2010 are leadless, allowing for maximum space on PCB layouts. All Bourns diodes are RoHS compliant and meet many worldwide industry and government regulations on lead-free components. TVS package diode design kits are also available from Bourns.
eBook
Features
- Unidirectional and bidirectional TVS options
- Low capacitance
- ESD protection
- RoHS compliant
- Chip Diodes
- Leadless
- Lead free with Cu/Ni/Au plated terminations, depending on the model
- Compatible with lead-free manufacturing processes
Applications
- Computers and peripherals
- Communication systems
- Audio and video equipment
- Portable instrumentation
- Handheld portable devices
DFN2 Diodes Datasheets
DFN6 Datasheets
DFN10 Diodes Datasheets
SOD323 Diodes Datasheets
Featured Products
Bourns 1.5SMBJ Transient Voltage Suppressor Diodes
Housed in an SMB (DO-214AA) package with a 1500W power rating.
Bourns CDDFN6-3312P Surface-Mount TVS Diode Array
Provides ESD, CDE & EFT protection in ultra-high-speed communication ports & sensitive transceivers.
Bourns P6SMB-Q Transient Voltage Suppression Diodes
Packaged in a compact DO-214AA (SMB) size format, ideal for surge and ESD protection applications.
Bourns CDSOD323-T05S-Q AEC-Q101 TVS Diodes
AEC-Q101 compliant TVS diodes for surge and ESD protection in a SOD323 package size format.
Bourns CDSOT23-TxxC-Q TVS Diodes
3.3 to 15V voltage range, a 500W rating, and bidirectional and unidirectional configurations.
Bourns CDSOT23-TxxLC-Q TVS Diodes
Offers a 5V to 8V standoff voltage rating, a 500W rating, and are AEC-Q101 compliant.
Bourns P4SMA-Q Transient Voltage Suppressor Diodes
5.8V-214V working voltage, 6.8V-250V breakdown voltage, bidirectional or unidirectional polarity.
Bourns SMA6J & SMA6J-Q 600W TVS Diodes
Provides 600W peak pulse power dissipation for high power density designs.
Bourns SMxJ Transient Voltage Suppressor (TVS) Diodes
Compact chip package-size formats for surge & ESD protection applications, surface-mount design.
Bourns SMxJ-Q AEC-Q101 TVS Diodes
Designed for surge and ESD protection applications, AEC-Q101 compliant and RoHS compliant.
Bourns 5.0SMDJ-Q 5kW AEC-Q101 TVS Diodes
Provide surge and ESD protection in a compact DO-214AB (SMC) chip package, AEC-Q101 compliant.
Bourns 15KPA-SD-Q TVS Diodes
High peak pulse power (10/1000μs) rating of 15kW and high peak pulse current (8/20μs) rating of 1kA.
Bourns Diodes Design Kits
Offer 20 to 40V repetitive peak reverse voltage range and a forward current of 1A.
Bourns RS-485 Evaluation Boards
Aids in evaluating RS-485 port protection using TBU HSPs, GDTs, TVS diodes & MOV products.
