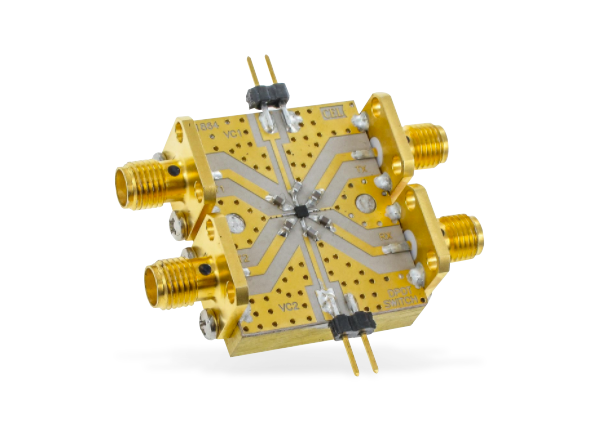

CEL CG2164X3-EVAL Evaluation Board

CEL CG2164X3-EVAL offers a comprehensive evaluation and demonstration platform for the CEL CG2164X3 GaAs MMIC Switch. The CG2164X3-EVAL uses 8pF DC Block Capacitors for all RF ports. A 1000pF capacitor is used for DC bypass on all control lines. The user can make an adjustment to these values according to specific application requirements.

The board material of the CG2164X3-EVAL is 20mil Duroid 6002, with a dielectric constant of 2.94.

Applicable Prodeucts

CG2164X3 RF Switch IC

CEL CG2164X3 RF Switch IC

DPDT RF switch for 2.5GHz and 6GHz dual-band wireless LAN with an operating frequency of 6GHz.

Learn Moreabout CEL CG2164X3 RF Switch IC View Productsrelated to CEL CG2164X3 RF Switch IC

Switch Logic

Chart - CEL CG2164X3-EVAL Evaluation Board

Board Layout

Mechanical Drawing - CEL CG2164X3-EVAL Evaluation Board
Published: 2017-05-11 | Updated: 2022-03-11
