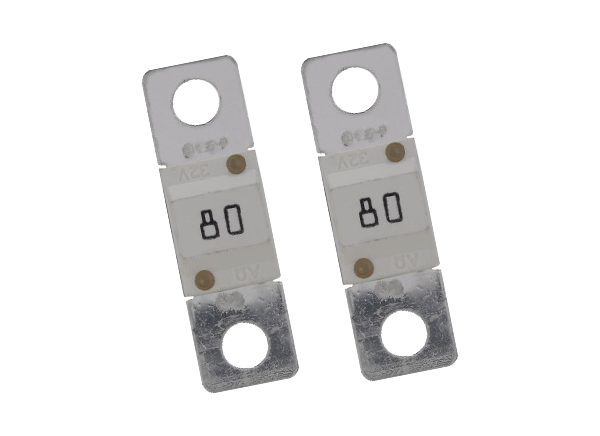

Eaton AMI Bolt-In Automotive Fuses
Eaton AMI Bolt-In Automotive Fuses feature a 32VDC voltage rating, a 30A to 150A current rating, and color-coded housings for each amperage. AMI fuses offer UL-Rated 94V-0 thermoplastic housing material and tin-plated brass terminal material. This Eaton fuse series is designed for power distribution protection for automotive systems.
Features
- 30A to 150A current rating
- 32VDC voltage rating
- 2000A at 32VDC interrupt rating
- UL-Rated 94V-0 thermoplastic housing material
- Tin-plated brass terminal material
- Max torque of 35in-lb (4Nm) mounting
- Color-coded housings for each amperage
Applications
- Power distribution protection
- Automotive systems
Additional Resources
Dimensions
Related Fuse Holders
Eaton LMI Bolt-in Fuse Holders
Heavy duty, accepts up to six industry-standard AMI fuses, used for main branch primary fusing.
Eaton PDM-AMI Multi-Fuse Holders
Features an IP6k9k enclosure to protect up to 4 AMI fuses and their spares from harsh environments.
