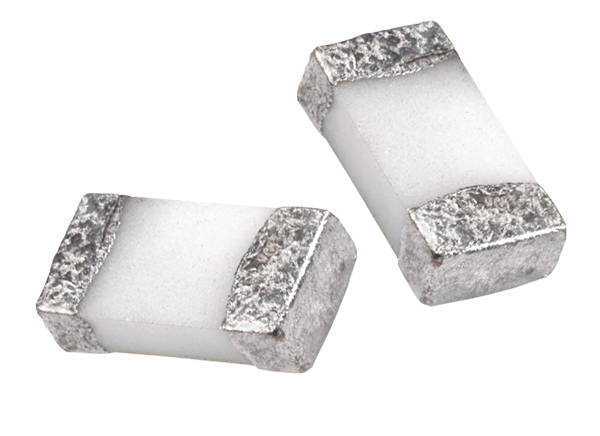

Bussmann / Eaton CC06FA Automotive-Grade Chip Fuses

Bussmann / Eaton CC06FA Automotive-Grade Chip Fuses offer a 500mA to 1.5A current range, 63VDC voltage rating, and are AEC-Q200 qualified. The CC06FA series features a rugged ceramic and glass construction and a 0603 compact design that utilizes less board space. Eaton CC06FA Automotive-Grade Chip Fuses are ideal for various automotive applications, including battery management systems (BMS), digital instrument clusters, and central body control modules.


  • AEC-Q200 qualified
  • 0603 (1608 metric) compact design utilizes less board space
  • Rapid interruption of excessive current
  • Compatible with reflow and wave solder
  • Rugged ceramic and glass construction
  • Excellent environmental integrity
  • One time positive disconnect


  • Moisture sensitivity level (MSL) :1
  • 500mA to 1.5A current range
  • 63VDC voltage rating
  • 50A interrupting rating
  • UL-recognized file: File E19180
  • -55°C to +125°C operating temperature range


  • Battery management systems (BMS)
  • Central body control modules
  • Doors, window lifts, and seat controls
  • Digital instrument clusters
  • In-vehicle infotainment (IVI) and navigation
  • Electric pumps, motor control, and auxiliaries
  • Powertrain control module (PCU) and engine control unit (ECU)
  • Transmission control unit (TCU)
