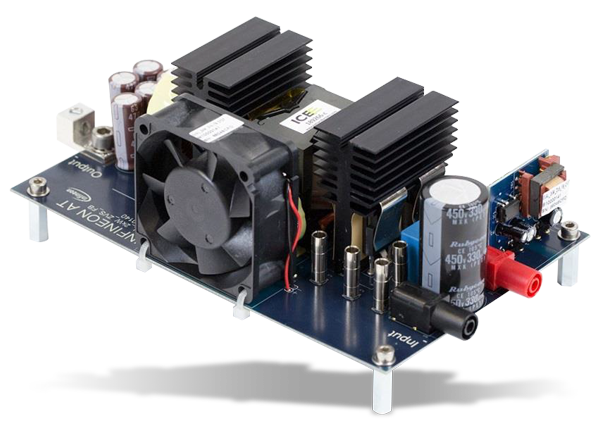

Infineon Technologies EVAL_2KW_ZVS_FB_CFD7 Evaluation Board

Infineon EVAL_2KW_ZVS_FB_CFD7 2kW ZVS Phase-shift Full-bridge Evaluation Board is a platform for the ZVS DC-DC converter for telecom rectifiers with an output voltage from 45 to 56VDC and an output power of 2kW. The ZVS DC-DC Converter offers an input voltage between 350-420VDC (typical 385VDC) and a switching frequency of 100kHz on the primary side. The EVAL_2KW_ZVS_FB_CFD7 provides a high-power density and optimal use of CoolMOS™ and OptiMOS™ BiC devices. The 2kW ZVS Phase-shift Full-bridge Evaluation Board is ideal for telecom SMPS, industrial SMPS, and industrial battery charger applications.

Features

BiC efficiency for ZVS PSFB topology
Optimal use of CoolMOS™ and OptiMOS™ BiC devices
High power density
Best-in-class (BiC) high voltage and low voltage MOSFETs for ZVS PSFB topology
Accurate driving scheme of both primary and secondary MOSFETs

Board Components
- Full-bridge 600V CoolMOS™ CFD7 SJ MOSFET
- OptiMOS™ 200V synchronous rectification MOSFET
- Auxiliary converter fix frequency CoolSET™
- EiceDRIVER™ 2EDN non-isolated gate driver IC
