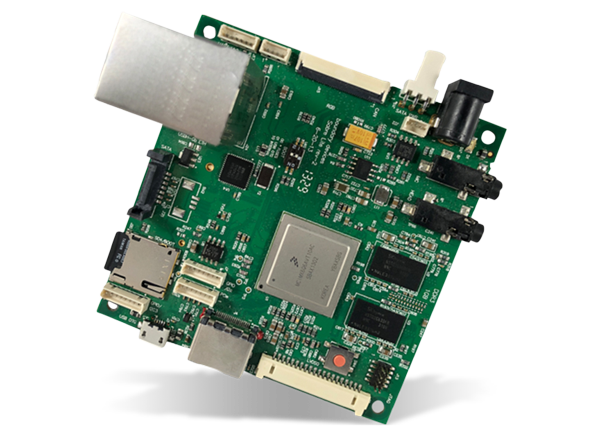

Boundary Devices SABRE Lite i.MX6 Development Board (BD-SL-i.MX6)
Boundary Devices SABRE Lite i.MX6 Development Board (BD-SL-i.MX6) is a low-cost development platform featuring the powerful NXP Semiconductors i.MX 6 Quad Applications Processor. Based on the SABRE (Smart Application Blueprint for Rapid Engineering) Lite Platform, the BD-SL-i.MX6 Board enables cost-effective, rapid development of multimedia applications for Android and Linux operating systems.
Features
- NXP Semiconductors i.MX 6 Quad Applications Processor
- 1GB of 64-bit wide DDR3 @ 532MHz
- Three display ports (RGB, LVDS, and HDMI 1.4a)
- Two camera ports (1x Parallel, 1x MIPI CSI-2)
- Multi-stream-capable HD video engine delivering
- H.264 1080p60 decode, 1080p30 encode, and 3-D video playback in HD
- Triple Play Graphics system consisting of a Quad-shader 3D unit capable of 200MT/s, and a separate 2-D and separate OpenVG Vertex acceleration engine for superior 3D, 2D, and user interface acceleration
- Serial ATA 2.5 (SATA) at 3Gbps
- Dual SD 3.0/SDXC card slots
- PCIe port (1 lane)
- Analog (headphone/mic) and Digital (HDMI) audio
- Compact size (82mm x 82mm)
- 10/100/Gb IEEE1588 Ethernet
- 10-pin JTAG interface
- 3 High-speed USB ports (2x Host, 1x OTG)
- 1x CAN2 port
- I2C
- GPIOs
Accessories
A wide range of accessories, such as touchscreen display, camera module, JTAG adapter, and more are available for the SABRE Lite i.MX6 Development Board.
Applicable Products
NXP Semiconductors i.MX 6 Processors
Multicore platform that includes single, dual, and quadcore families based on the Arm Cortex-A9.
Related Products
Wandboard i.MX6 Cortex-A9 Development Boards
Single Board Computers (SBCs) based on the single, dual, and quad core NXP Semiconductors i.MX 6
NXP Semiconductors i.MX 6 Development Boards
Development and prototyping platforms based on the single, dual, and quadcore i.MX 6 Processors.
Board Layout (Top)
Board Layout (Top)
