M5Stack K065 ATOM PWM Kit

m5Stack K065 ATOM PWM Kit is a single-channel PWM regulated DC driver with a built-in MOSFET load capacity up to 12V @ 100W. This device is suitable for high-power DC motor PWM speed control and industrial heating wire control applications. Using ATOM LITE as the core controller (built-in ESP32), it has a wide PWM dynamic adjustment range (e.g., frequency of 5kHz, duty cycle adjustment range 0-100%, resolution up to 13bit). When combined with the built-in Wi-Fi® and BLUETOOTH® function, it can also quickly achieve remote control. The m5Stack K065 ATOM PWM Kit supports UIFlow graphical programming for easy signal output and function expansion configuration.


  • Single-channel low latency PWM signal output
  • High power MOSFET, output capacity 12V @ 100W
  • Reserved 1xGROVE expansion interface
  • Built-in DC-DC (12V to >5V) conversion circuit
  • Easy installation, simple operation
  • All-in-one design with protective cover
  • Development platform: Arduino/UIFlow


  • Driver Chip - EG27324
  • MOSFET - FDD8447L
  • 100W maximum output power
  • 12V-24V input voltage range DC
  • Number of drive channels (1)
  • Net weight (28.9g)
  • Gross weight (37.3g)
  • 24mm x 48mm x 18mm product dimensions
  • 54mm x 54mm x 20mm package size

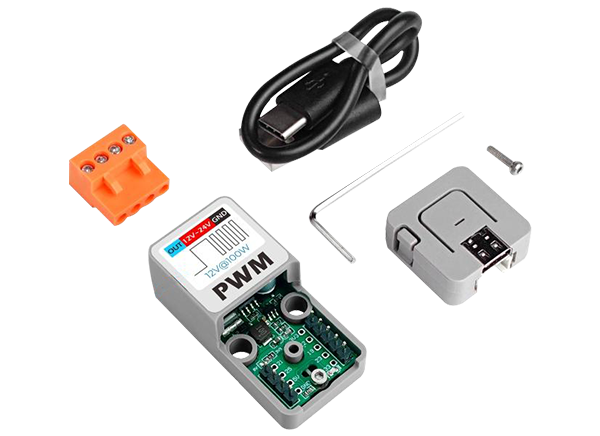

Kit Contents

  • 1x ATOM PWM
  • 1x ATOM LITE
  • 1x M2 hex wrench
  • 1x M2*8 cup head machine screw
  • 1x 3.96-4P terminal
  • 1x TYPE-C USB data cable (20cm)


  • DC motor control
  • Light control
  • Heater control
  • DC Load
Published: 2021-10-25 | Updated: 2022-03-11
