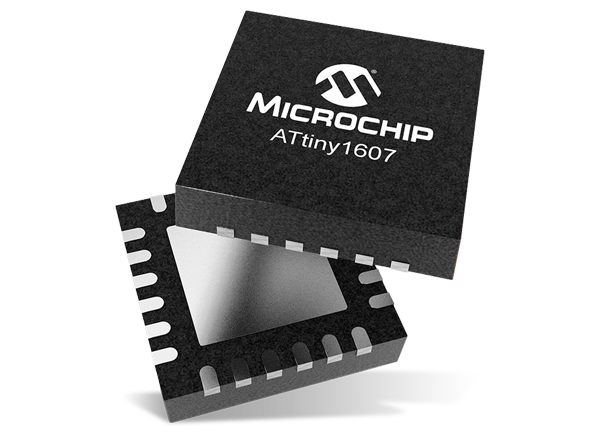

Microchip Technology ATtiny1607 Microcontrollers

Microchip Technology ATtiny1607 Microcontrollers use the high-performance, low-power AVR^® Reduced Instruction Set Computer (RISC) architecture. These MCUs can run up to 20MHz and include 16KB flash memory, 1024 bytes of SRAM, and 256 bytes of EEPROM in a 24-pin package. The ATtiny1607 MCUs use the latest technology with a flexible and low-power architecture, including Event System and SleepWalking, accurate analog features, and advanced peripherals.

Features

CPU
- AVR^® 8-bit CPU
- Running at up to 20MHz
- Single-cycle I/O access
- Two-level interrupt controller
- Two-cycle hardware multiplier
Memories
- 16KB In-system self-programmable flash memory
- 256B EEPROM
- 1024B SRAM
I/O and Packages
- 24-pin
  - 22 Programmable I/O lines
  - VQFN 4 x 4
Temperature ranges
- -40°C to 105°C operating range
- -40°C to 125°C temperature graded device options available
Speed grades
- T_A maximum of 105°C
  - 0-5MHz @ 1.8V to 5.5V
  - 0-10MHz @ 2.7V to 5.5V
  - 0-20MHz @ 4.5V to 5.5V

System
- Power-on Reset (POR)
- Brown-out Detection (BOD)
- Internal and external clock options with
  - 16/20MHz low-power internal RC oscillator
  - 32.768kHz Ultra Low Power (ULP) internal RC oscillator with ±10% accuracy and ±2% calibration step size
  - External clock input
- Single pin Unified Program Debug Interface (UPDI)
- Three sleep modes
  - Idle with all peripherals running and mode for an immediate wake-up time
  - Standby sleep mode
    - Configurable operation of selected peripherals
    - SleepWalking peripherals
  - Power-down sleep mode with limited wake-up functionality
