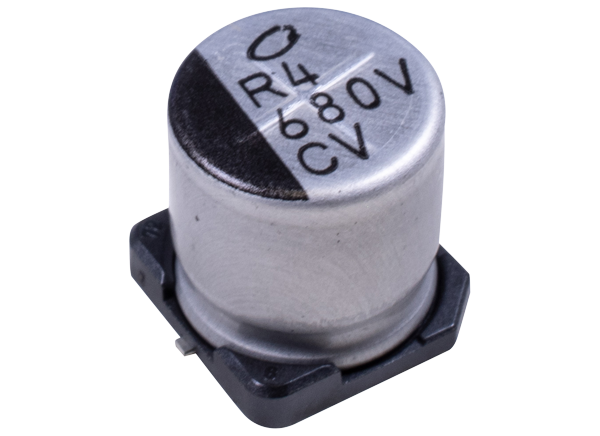

Nichicon UCV Aluminum Electrolytic Capacitors
Nichicon UCV Aluminum Electrolytic Capacitors are chip-type devices with a low impedance temperature range up to +105°C. These surface-mount capacitors offer a rated voltage range of 25V to 35V and a rated capacitance range of 220μF to 1000μF with ±20% capacitance tolerance at 120Hz, 20°C. Nichicon UCV Aluminum Electrolytic Capacitors are RoHS compliant and ideal for use in home appliances and transportation applications.
Features
- Chip type
- Low impedance temperature range up to +105°C
- -55°C to +105°C temperature range
- 25V to 35V rated voltage range
- 220μF to 1000μF rated capacitance range
- ±20% capacitance tolerance at 120Hz, 20°C
- RoHS compliant (2011/65/EU)
Applications
- Home
- Transportation
Chip Types
Published: 2015-09-01
| Updated: 2022-03-11
