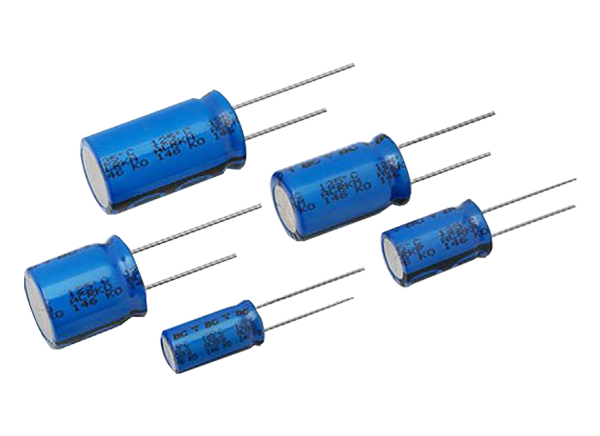

Vishay / BC Components 190 RTL Radial Aluminum Electrolytic Capacitors
Vishay / BC Components 190 RTL Radial Aluminum Electrolytic Capacitors are high-stability, high-reliability capacitors with a long useful life of 2500h to 6000h at 125°C. These very low ESR capacitors have a capacitance range of 100μF to 6800μF and a voltage range of 16V to 50V. The 190 RTL capacitors feature excellent ripple current capability and are charge and discharge-proof. These capacitors are AEC-Q200 qualified and offer excellent ripple current capability. Typical applications include smoothing, filtering, buffering, and power supplies for industrial, automotive, telecommunications, and military.
Features
- Polarized aluminum electrolytic capacitors, non-solid electrolyte
- Radial leads, cylindrical aluminum case with pressure relief, insulated with a blue PET sleeve
- Charge and discharge proof
- Excellent ripple current capability
- 2500h to 6000h at 125°C useful life
- High stability, high reliability
- Very low ESR
- AEC-Q200 qualified
Applications
- Power supplies (SMPS, DC/DC converters)
- Industrial
- Automotive
- Telecommunications
- Military
- Smoothing, filtering, and buffering
Additional Resource
Published: 2020-07-15
| Updated: 2023-07-24
